Features
- DHW temperature control
- Heating temperature control
- Smart heating temperature control modes:
- PID
- Equithermic curves - adjusts the temperature based on indoor and outdoor temperatures
- Hysteresis setting (for accurate maintenance of room temperature)
- Ability to connect additional (external) sensors: Dallas (1-wire), NTC 10k, Bluetooth (BLE). Makes it possible to monitor indoor and outdoor temperatures, temperatures on pipes/heat exchangers/etc.
- Emergency mode. In any dangerous situation (loss of connection with Wifi, MQTT, sensors, etc) it will not let you and your home freeze.
- Ability of remote fault reset (not with all boilers)

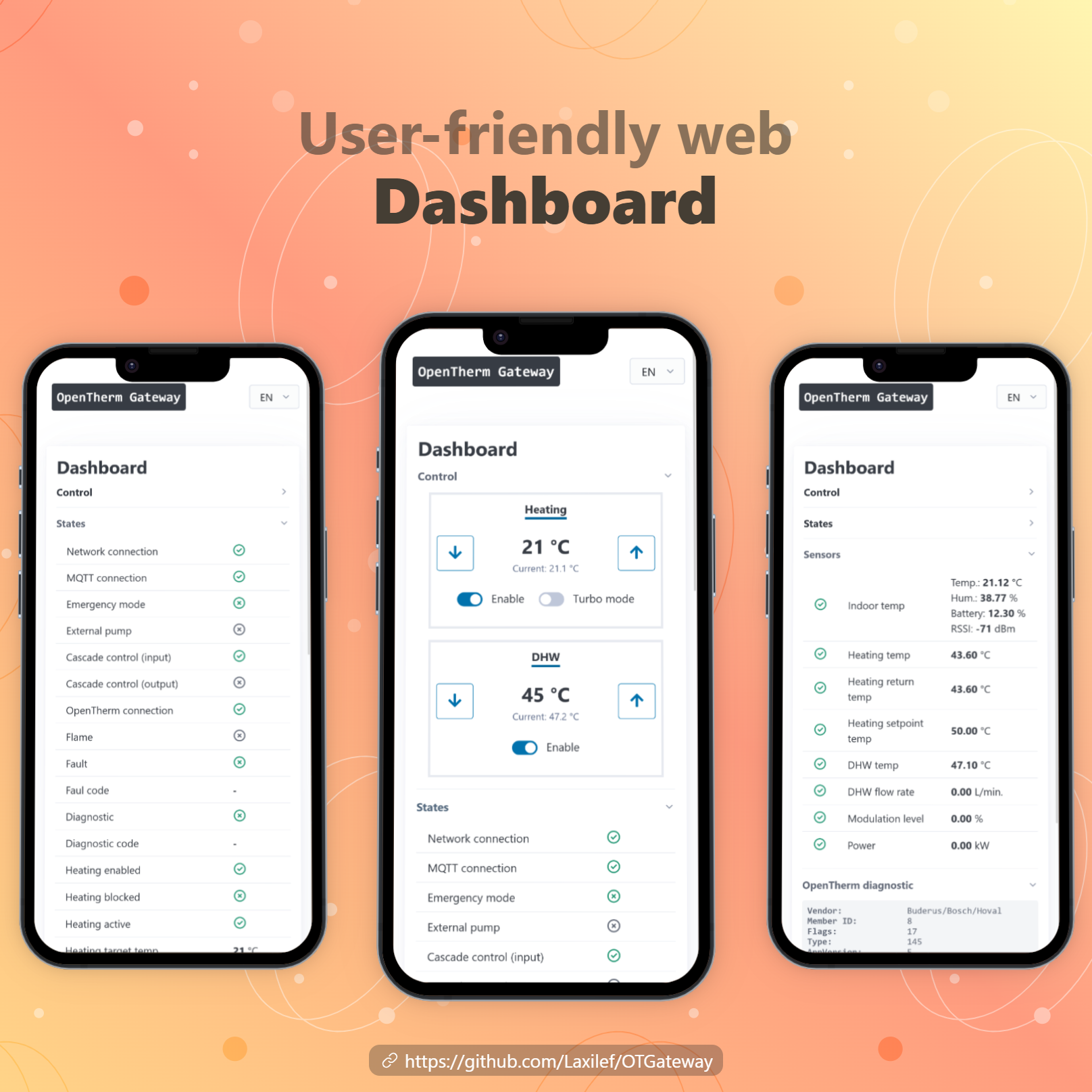

- Diagnostics:
- Displaying gateway status
- Displaying the connection status to the boiler via OpenTherm
- Displaying the fault status and fault code
- Displaying the diagnostic status & diagnostic code
- Display of the process of heating: works/does not work
- Display of burner (flame) status: on/off
- Display of burner modulation level in percent
- Display of pressure in the heating system
- Display of current temperature of the heat carrier
- Display of return temperature of the heat carrier
- Display of setpoint heat carrier temperature (useful when using PID or Equitherm)
- Display of the process of DHW: working/not working
- Display of current DHW temperature
- And other information...

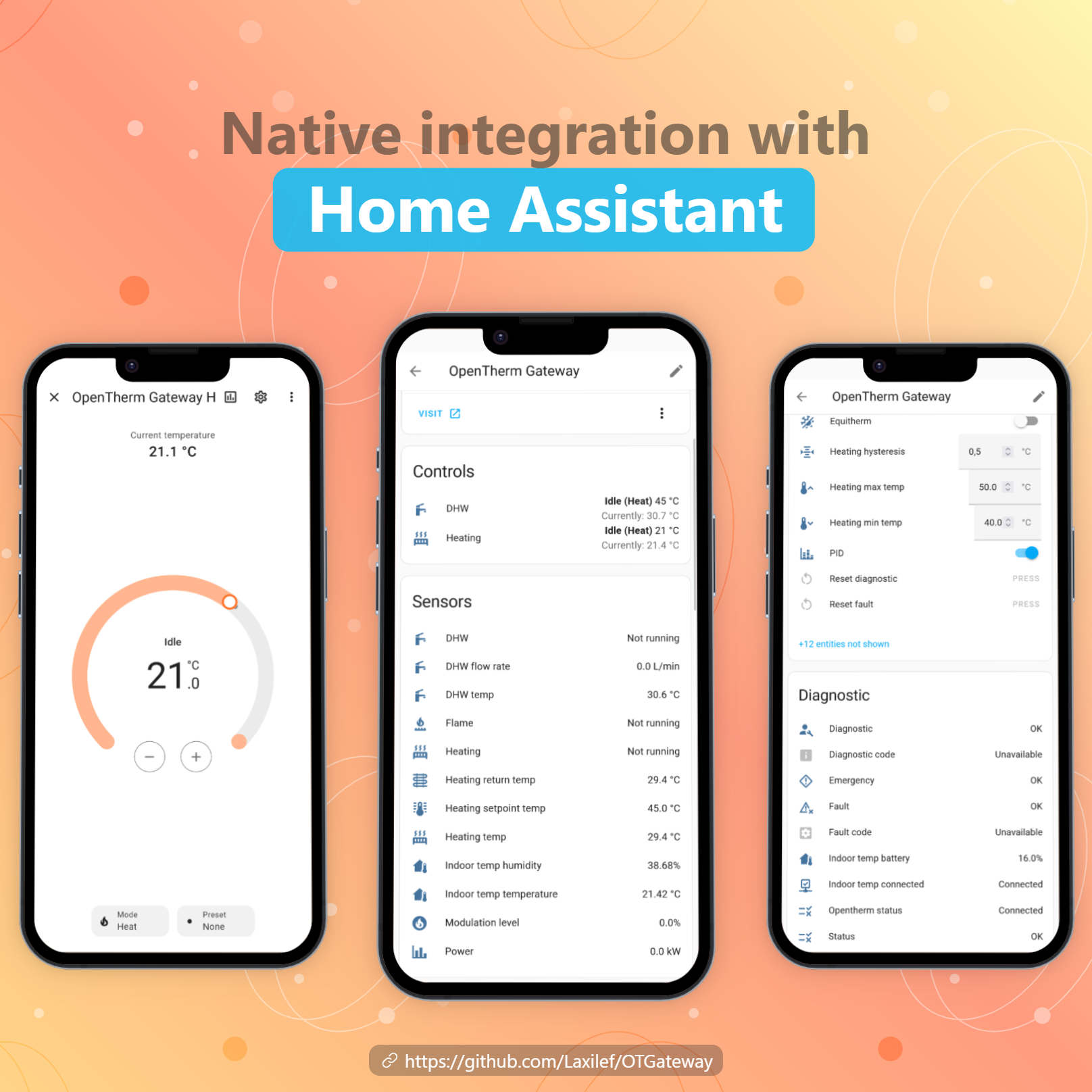

- Home Assistant integration via MQTT. The ability to create any automation for the boiler!
Documentation
All available information and instructions can be found in the wiki:
- Home
- Compatibility
- FAQ & Troubleshooting
- OT adapters
Gratitude
- To the developers of the libraries used: OpenTherm Library, ESP8266Scheduler, ArduinoJson, NimBLE-Arduino, ArduinoMqttClient, ESPTelnet, FileData, GyverPID, GyverBlinker, OneWireNg & OneWire
- To the PlatformIO Team
- To the team and contributors of the pioarduino project
- To the BrowserStack team. This project is tested with BrowserStack.
- To the PVS-Studio - static analyzer for C, C++, C#, and Java code.
- And of course to the contributors for their contribution to the development of the project!
